1. Applying precision linear guide of Taiwan TBI and motor of Siemens Servo to move the cameras right and left.

2. Using motor of Siemens Servo to drive and position the printing roller/ cylinder.

3. Adopting Taiwan cameras and gear motor, PLC of Siemens.

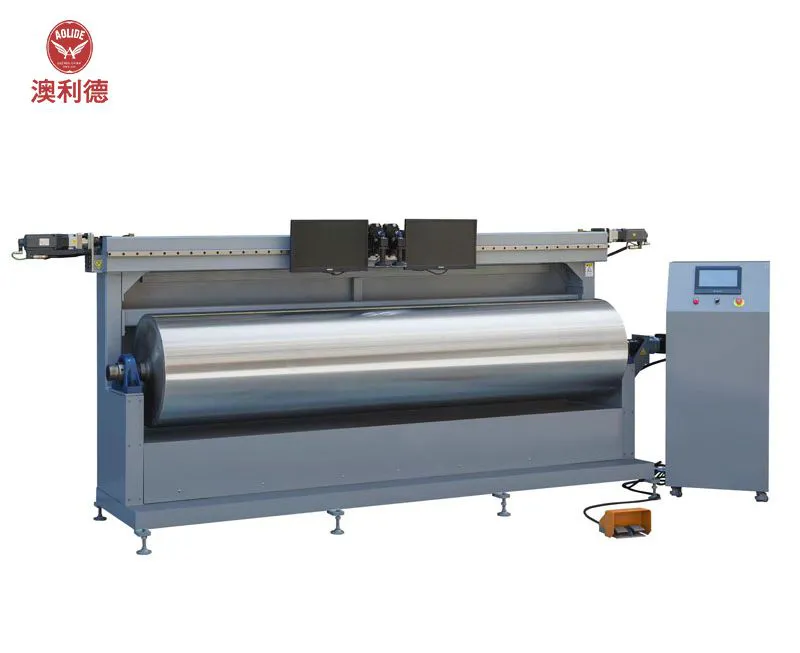

The smart high -definition speed efficiency panel device is the first smart equipment in the field of printing flexible versions and packaging cardboard boxes in our company. The device uses high -definition display and source file content according to 1: 1 ratio, which is convenient for operators to be more efficient and accurate. The installation design is scientific and humanized, the screen display is adjustable, the vertical visual positioning is accurate, the performance is stable, the operation is simple, the high -speed output, and the cost performance is high.

Frequency: 15kHz

Power: 4200W

Input air pressure: 0-7bar

Welding head stroke: 100mm

Welding area: ф350mm

Press size: 965x750 x2250mm

Electric box size: 421MM x 320MM x 118MM

Press weight: 87kg

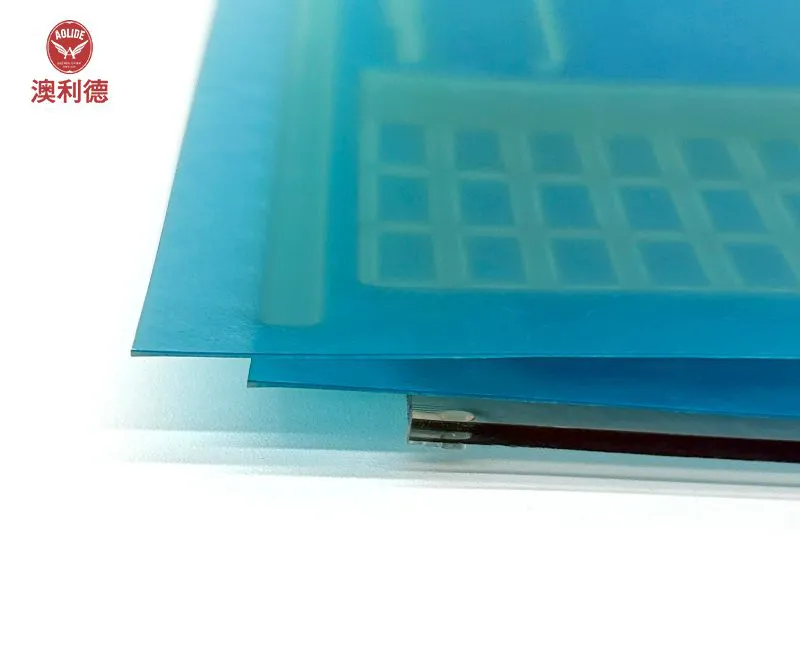

1) Excellent dot and isolated line reproduction

2) Solid printing performance

3) High latitude of exposure and processing

4) Good ink transfer

5) High impression
