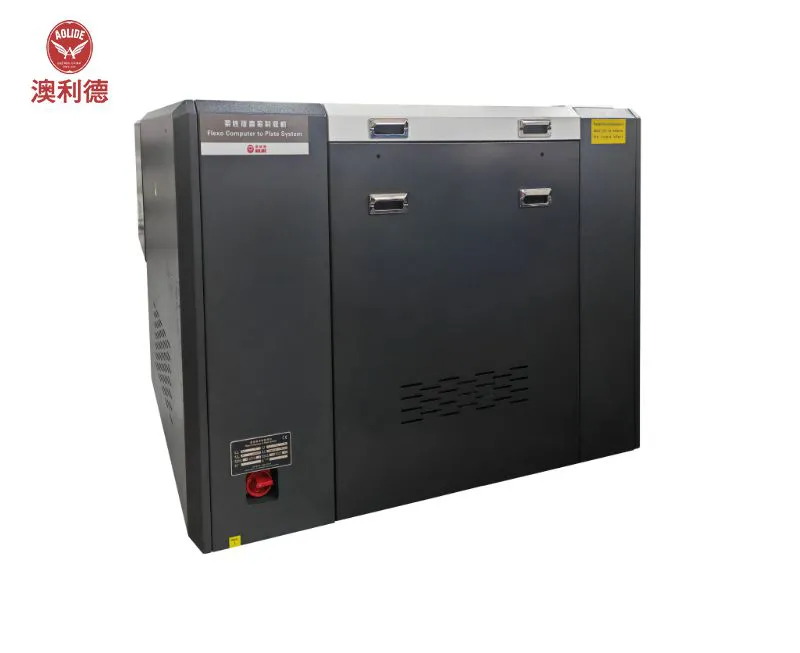

Digital Flexo CTP Photopolymer Plate Processor Machine

Description

Technical Parameters

Model NO	Max Produce Capacity
ALD-6048F-1	1.4 ㎡/h
ALD-6048F-2	2.8 ㎡/h
ALD-6048F-3	4.2 ㎡/h

Products Details

1. Max plate size 1524*1270mm(60*50inch)

2. Thickness of plate 0.95-6.35mm

3. Output Media: Output Media: Digital flexographic water-washable letterpress plates; Digital flexographic water-washable plates; Digital flexographic solvent-washable plates;

4. Main application Label, Trademark, Package

5. Resolution 4800DPI

6. Loading Method: Manual Loading

7. Interface:Gigabit Ethernet

8. Size of machine: L×W×H=2600mm×1600mm×1300mm, 2200kg

9. Power: 220VAC 50/60Hz 8kW Peak

10. Environment: Best environment temperature 18-30℃, Humidity 40-70% non condensing
